2023 MONDRAKER CHASER R - MEDIUM - DIRTY WHITE/BLACK

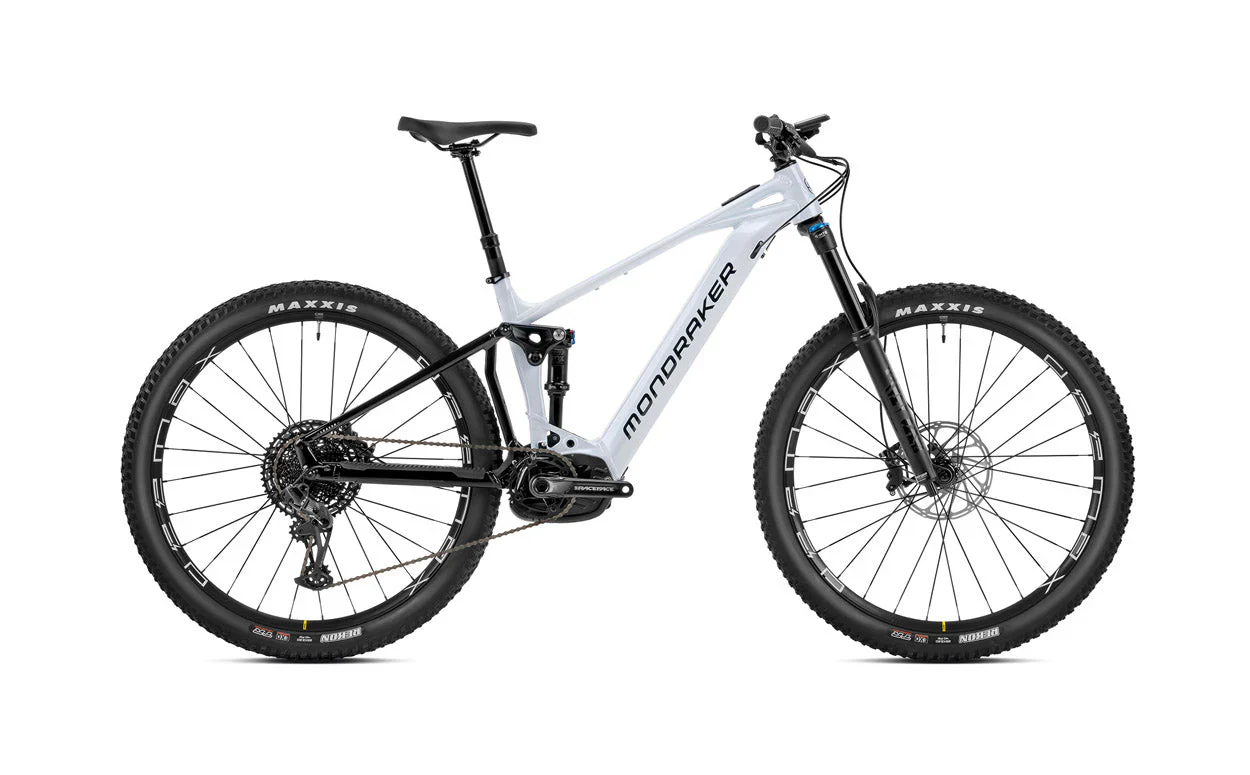

Product image 1

2023 MONDRAKER CHASER R - MEDIUM - DIRTY WHITE/BLACK

Description

The Chaser R is our best value ebike if you’re looking for a competitive, efficient ride rocking Mondraker’s market leading tech. The frame’s been optimized so that it’s up for anything. Trails and more trails, ascents and descents, technical trails or gnarr, the CHASER R won’t be the one holding you back if you’re thinking of sending it. The ZERO suspension system, FORWARD GEOMETRY and STEALTH ALLOY EVO make it a benchmark, technologically speaking. If we add in to the mix the optimization of the kinematics of the rear suspension you just couldn’t ask for more. For 2023, in addition to the Mini Remote control and integrated System Controller, it features Bosch’s elegant Intuvia 100 display. The CHASER R is a Mondraker thoroughbred at a very reasonable price point.

SPECIFICATION

01. FRAME

Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery

01A. FRAME

Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive p

02. FORK

Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload

03. REAR SHOCK

Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

04. SHOCK SETTINGS

medium compression, medium rebound, air volume spacer 0.4

05. HEADSET

Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree

06. STEM

Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore

07. HANDLEBAR

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore

08. GRIPS

Onoff Twin, 1lock-on, 135mm

09. SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

10. SADDLE

MDK ebike black

11. FRONT BRAKE

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

12. REAR BRAKE

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

13. BRAKE LEVER

Sram DB8, tool-free reach adjust

14. FRONT HUB

Mavic, Boost 15x110mm, IS 6 bolts

15. REAR HUB

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts

16. FRONT TIRE

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

17. REAR TIRE

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

18. CRANKSET

Race Face Aeffect ebike, 165mm

19. RINGS

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

20. PEDALS

N/A

21. CHAIN

Sram SX Eagle, 12s, Powerlock

22. REAR DERAILLEUR

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

23. CASSETTE

Sram PG-1210, 11-50T, 12s

24. MOTOR

Bosch Performance Line CX Cruise (25Km/h) Smart System

25. BATTERY

Bosch Powertube 750Wh

26. DISPLAY

Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

27. DERAILLEUR HANGER

Mondraker M068

28. SIZES

S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Select Size
From $4,989.87
